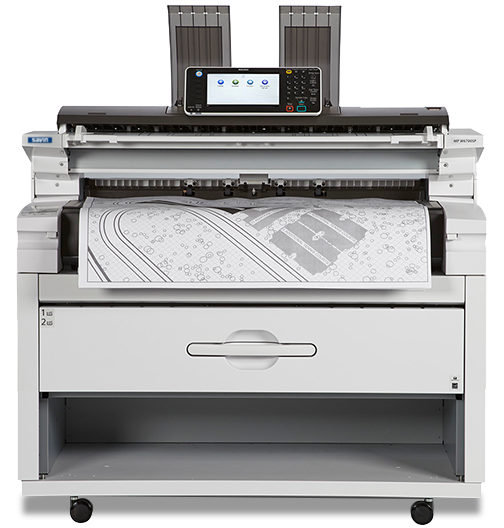

MP W6700SP

Wide Format Digital Imaging System

Reliable and precise wide format communications — A more intelligent way to print, scan and share

  •   Print 6.7 A1/D LEF b&w ppm at up to 600 dpi
  •   Scan full-color originals at up to 1200 dpi
  •   A space-saving design maximizes floor space
  •   Make information mobile and review it anywhere, anytime
Categories: ,

General Specifications

Configuration

Console

Paper Source

2 roll paper feeder

First Copy

19 seconds (D-size)

Resolution

600 dpi x 600 dpi

Grayscale Scanning

256 levels

Grayscale Printing

2 levels

Zoom

25% to 400% by 0.1% increments

Multiple Copies

1 to 99 (ten key input)

Cutting Method

Synchronized, preset size, variable

Memory Capacity

.04″ (1 mm)

Hard Disk Drive

320 GB (shared with copier/printer/scanner)

Original Feed

Sheet

Original Set Position

Center

Original Exits

2 Ways: Original Rear Exit (straight through) / Original Upper Exit

Copy Exits

Front: 99 sheets (Plain Paper D-size LEF)
Back: 10 sheets (Plain Paper E-size LEF)

Original Paper Weight

14 – 28 lbs

Output Paper Weight

52.3 – 110 gsm (Paper Roll)

Copying Speed

6.7ppm (D-size)

Power Source

120 V, 20A (max), 60 Hz

Max Power Consumption

1.44 kW per hour

49.2″ x 29.7″ x 47.8″ (1,250 x 755 x 1,215 mm)

Weight

507 lbs. (230 kg)

Copier Features

Copy Modes (Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode)
Auto Paper Select (APS)
Auto Replace/Enlargement
Auto Reduce/Enlargement
User Auto Reduce/Enlargement
Preset Reduce/Enlargement
Zoom
Size Magnification
Directional Magnification (percent and mm/inch)
Fine Magnification
Image Overlay, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Sample Copy, Combine Images
Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Image Shift – Front/Rear/Left/Right (0 to +/- 200 mm by 1 mm steps)
Preset Stamps, User Preset Stamps, Data Stamps, Page Stamp

Printer Specifications

Controller Board

Embedded

CPU

Calpella 1.06 GHz

Print Speed

6.7 ppm D-size, 3.3 ppm E-size

Print Resolution

Up to 600 dpi

Print Drivers

Adobe® PostScript3, HDI (AutoCAD)

Supported File Formats

HP-GL, HP-GL2, HP-RTL, TIFF, CALS, JPEG, PostScript, PDF, MS Office® , DWG/DWF

European 136 fonts (PS3)

Network Interface

Standard: Ethernet 10/100BASE-TX
Optional: Wireless LAN IEEE 802.11a/g/n

Network Protocol

TCP/IP, UDP/IP, ICMP/IP

Supported OS

Windows XP/Vista/7/8/8.1/2003 Server/2008 Server/2008R2 Server/2012 Server/2012R2 Server, Mac OS (10.7 or later)

Printer Features

Auto Paper Select, Pen Setting, Media Selection, Stamp Setting, Roll Select, Language Setting, Set-up Launcher, Output Tray Select, Online Help Menu, Multiple Print Sets, Combine Images, Locked Print Document Server, Sample Print, Remote Print via Internet, Magnification, Mirror Setting, Border Setting, Set X and Y Axis, Transparency Mode, Delete After Printing, Engine Status Monitor, Encryption, PDF Batch Print

Supported Languages

English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

Scanner Specifications

Color Scan

Standard

Scan to Multimedia

Standard

Media to Print

Print from USB/SD (JPEG/TIFF/PDF)

Scan Speed

Color: 26.7 mm/s or 1.05 ips Monochrome: 80 mm/s or 3.15 ips

Scan Resolution

Up to 600 dpi; TWAIN: Up to 1200 dpi

Scan Mode

Color: Text/Photo mode, Photo Monochrome: Drawing mode (Default, Text mode, Text/Photo mode, Text/Drawing mode, Photo mode, Gray scale)

Scan Detection

Auto, Preset Paper Size, Custom

Scan Protocols

Network: TCP/IP Sending Email: SMTP AUTH, POP before SMTP Scan-to-Folder: SMB, FTP, NCP

Image Density

9 levels of lighter to darker

Edit

Erase Border, Positive/Negative, Mirror Image

Scanner Features

Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Scan-to-URL, Scan-to-USB/SD, Network TWAIN, Scan-to-NCP, Scan-toDocument Server

Preview

Full View: 18″ x 24″; Section Preview: 36″ x 48″

File Formats

Multi page TIFF
Single page TIFF
Multi page PDF
Single page PDF
Single page JPEG
High Compression PDF
PDF/A
